Connect Postgres Database Using Lambda Function

Connect Postgres Database Using Lambda Function

·

3 min read

Play this article

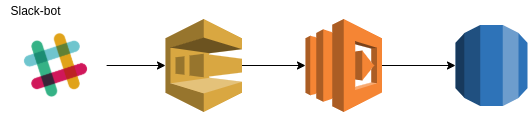

Use slackbot to send SQS message which trigger lambda function for executing SQL command on database

Alt Text

This post focuses on creating SQS queue and lambda function (not how to create a slackbot)

###1. Create SQS queue using CDK (Cloud Development Toolkit)

####Source: github.com/vumdao/create-db-user/tree/maste..

└── sqs_stack
    ├── app.py
    ├── cdk.json
    ├── README.md
    ├── requirements.txt
    ├── setup.py
    ├── source.bat
    └── sqs_stack
        ├── __init__.py
        └── sqs_stack_stack.py

####Notes:

  • SQS name: create-db-account

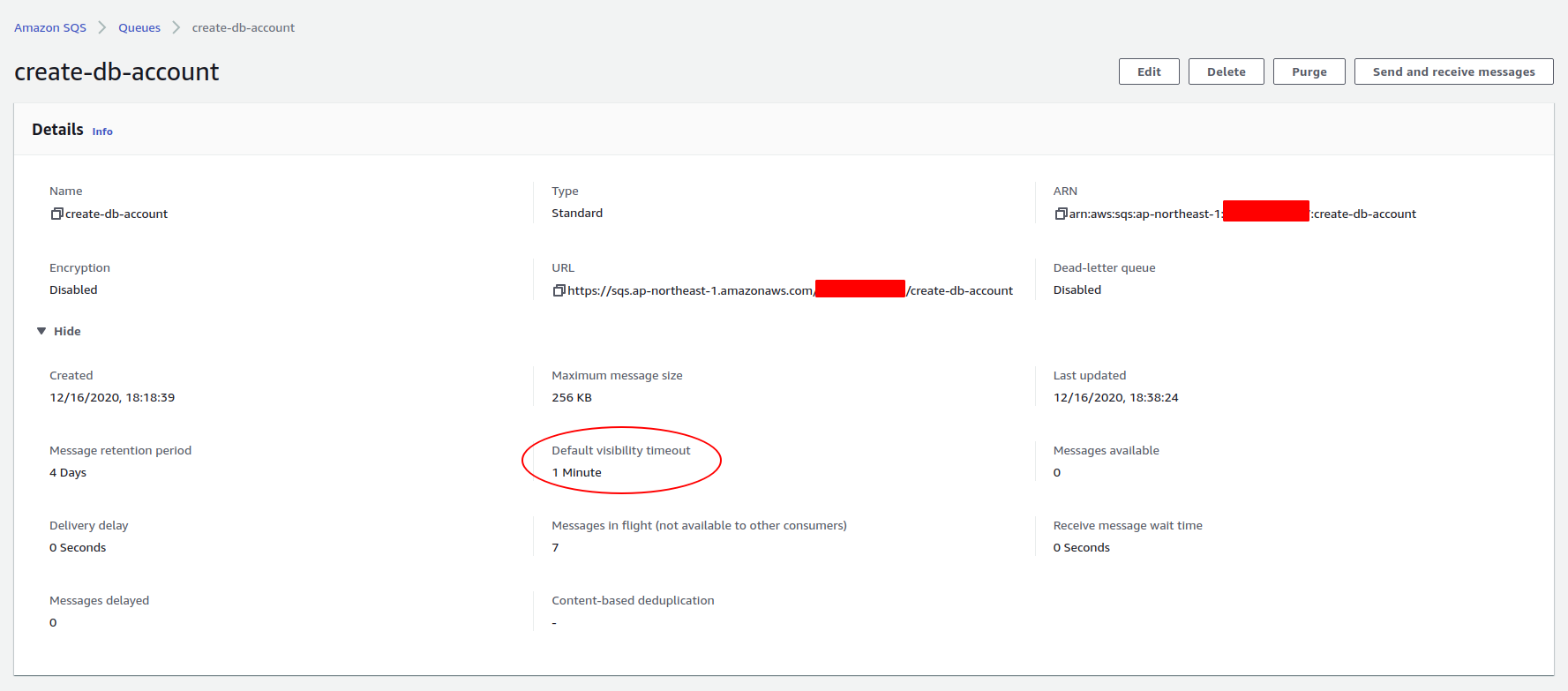

  • SQS Default visibility timeout must be equal or higher than the timeout of the lambda function which is subscribed to
  • Deploy SQS
    cdk deploy

    Alt Text

###2. Create Lambda function which is triggered by the SQS queue using AWS Chalice

####Source: github.com/vumdao/create-db-user/tree/maste..

├── lambda
│   ├── app.py
│   ├── policy
│   ├── region.env
│   └── requirements.txt

####The lambda function receive SQS message to execute SQL of creating new user on RDS

chalice new-project create-db-user

####Set VPC for Lambda Function same with RDS, AWS Chalice bases on current region and the subnet ID to detect VPC, security is a must for using subnet-ID

      "subnet_ids": [
         "subnet-0f6ea4292ab9a63db",
         "subnet-00d29b42b2e17b5b5"
      ],
      "security_group_ids": ["sg-00668399e4bdd462e"]

####Disable mange IAM role from AWS Chalice to control the policy of the role

      "manage_iam_role": false,
      "iam_role_arn": "arn:aws:iam::111111111111:role/create-db-user-dev",

####Policy

    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "logs:CreateLogGroup",
                "logs:CreateLogStream",
                "logs:PutLogEvents"
            ],
            "Resource": "arn:*:logs:*:*:*"
        },
        {
            "Effect": "Allow",
            "Action": [
                "sqs:ReceiveMessage",
                "sqs:DeleteMessage",
                "sqs:GetQueueAttributes"
            ],
            "Resource": "*"
        },
        {
            "Effect": "Allow",
            "Action": [
                "ec2:DescribeNetworkInterfaces",
                "ec2:CreateNetworkInterface",
                "ec2:DeleteNetworkInterface",
                "ec2:DescribeInstances",
                "ec2:AttachNetworkInterface"
            ],
            "Resource": "*"
        }
    ]
}

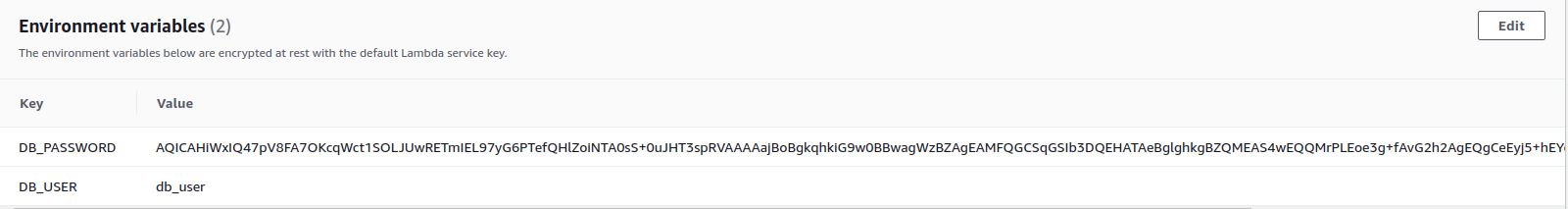

####Lambda does not resolve hostname directly so RDS hostname is resolved by using socket function

host=socket.gethostbyname(DB_HOST)

####Deploy the lambda

chalice deploy

Alt Text

Alt Text

Alt Text

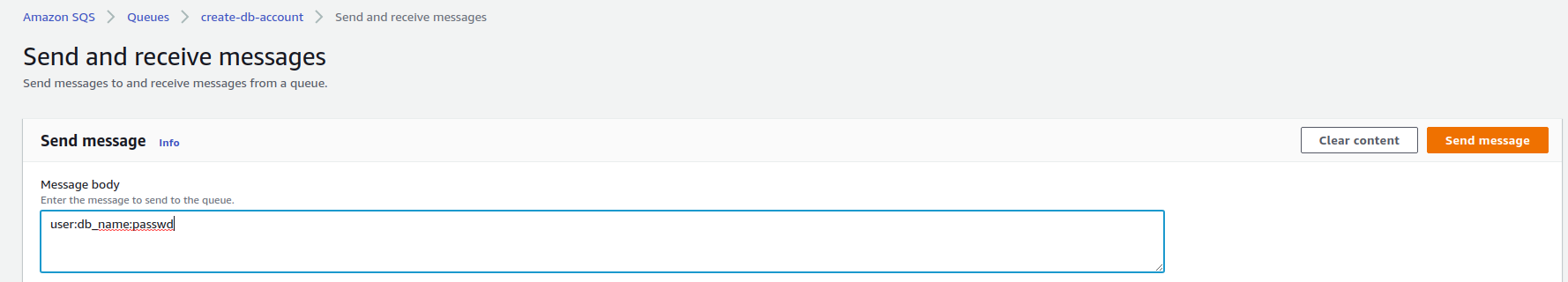

###Test Alt Text

###Notes:

  • Lambda function will delete SQS message if there's no issue.
  • The SQS message will leave there until it's Default visibility timeout so should handle any exception to delete the message
